Laminar vs Turbulent Flow: Fluid flow is one of those topics that sits quietly in the background of an enormous range of engineering and scientific applications — until you encounter a problem that forces you to understand it properly.
Why does the smoke from a candle rise in a smooth column before breaking into chaotic swirls? Why does blood flow differently in large arteries versus small capillaries? Why do pharmaceutical cleanrooms specify airflow in terms that go beyond simply “moving air from point A to point B”? Why does a pipe carrying water behave differently at low flow rates versus high ones?
All of these questions connect to the same fundamental phenomenon — the distinction between laminar flow and turbulent flow, and the conditions that determine which regime prevails.
Understanding Laminar vs Turbulent Flow isn’t just theoretical physics. It has direct, practical consequences for cleanroom design, pharmaceutical manufacturing, piping system engineering, chemical processing, and laboratory design. And it’s the kind of understanding that separates engineers and scientists who work with fluid systems intuitively from those who struggle to diagnose problems that seem inexplicable.
This guide covers the complete picture — from the physics of Reynolds number to the practical implications for cleanroom airflow design, and how all of this connects to building laboratory and cleanroom environments that actually perform as intended.

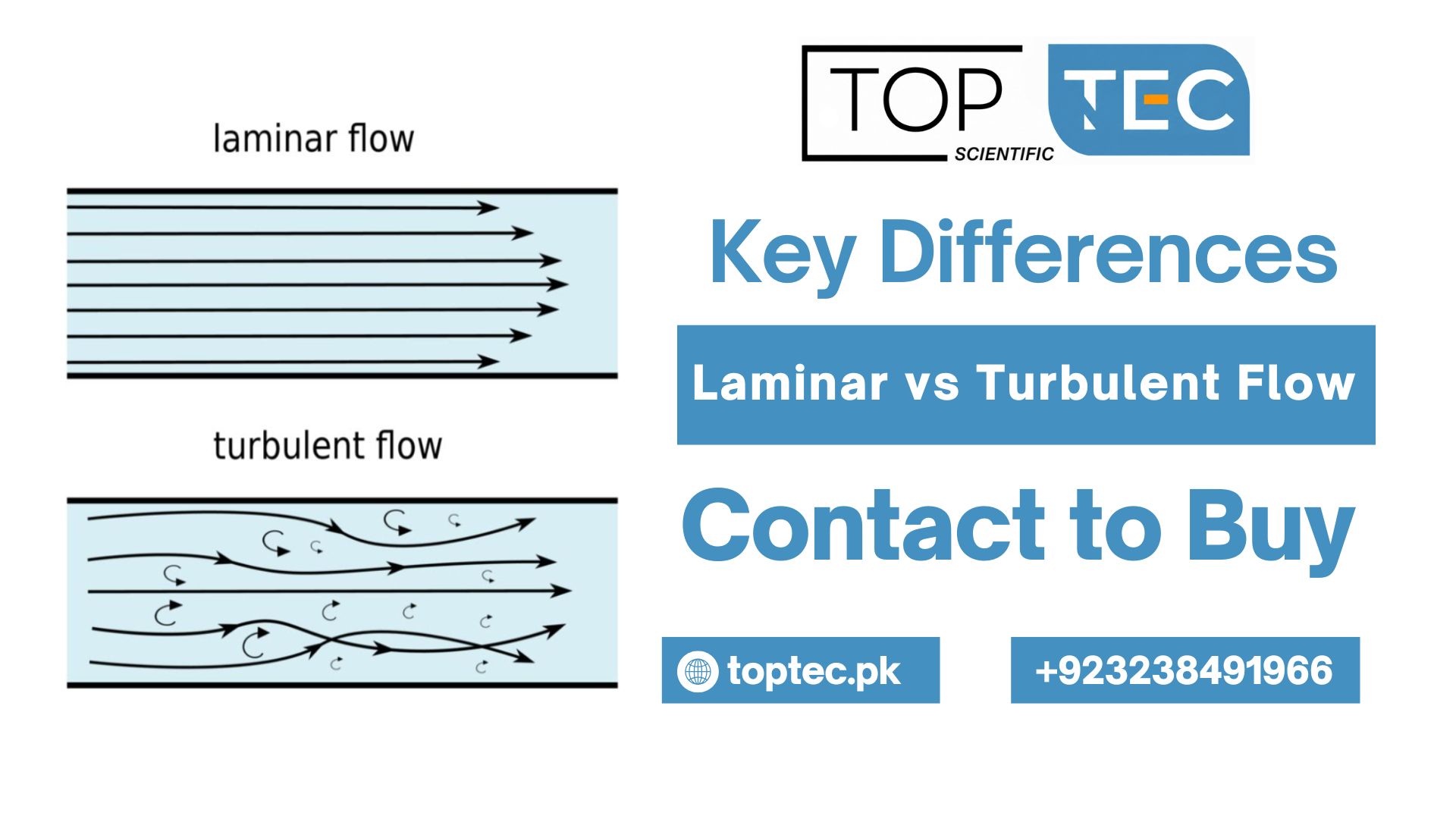

The Fundamental Question: What Is Laminar Flow?
Laminar flow is fluid motion characterized by smooth, parallel layers of fluid moving in the same direction without mixing between layers. Think of a stack of playing cards sliding across each other — each layer moves at its own velocity, with the fastest layer at the center and the slowest at the walls (for pipe flow), but there’s no mass transfer between layers. The motion is orderly, predictable, and mathematically elegant.
The word “laminar” comes from the Latin “lamina” meaning a thin plate or layer — describing precisely this layered, parallel flow structure.
In laminar flow, fluid particles follow smooth, predictable paths called streamlines. If you injected dye into a laminar flow stream, it would travel in a straight, unbroken line parallel to the flow direction. No mixing. No chaotic cross-movements. Just clean, ordered motion.
What Is Turbulent Flow?
Turbulent flow is the opposite in almost every meaningful sense. Instead of smooth, ordered layers, turbulent flow is characterized by chaotic, irregular motion with eddies, vortices, and rapid velocity fluctuations in all directions. Fluid particles follow unpredictable, three-dimensional paths that constantly mix layers of fluid.
Inject dye into turbulent flow and it rapidly disperses in all directions — within a short distance, the dye has spread throughout the cross-section rather than remaining in a defined stream.
Turbulent flow is the default behavior of most fluid systems we encounter in everyday life. Water from a tap at normal flow rates is turbulent. Wind around buildings is turbulent. Flow in most industrial piping is turbulent. Laminar vs Turbulent Flow differences aren’t academic — they determine pressure drop, heat transfer, mixing behavior, and particle transport in ways that matter enormously for engineering applications.
The Reynolds Number — The Governing Parameter
The Reynolds number (Re) is the dimensionless parameter that predicts which flow regime — laminar flow or turbulent — will prevail under given conditions. It was developed by Osborne Reynolds in the 1880s through elegant experiments that visualized the transition between flow regimes in glass pipes.
The Reynolds Number Formula
Re = (ρ × V × L) / μ
Where:
- ρ (rho) = fluid density (kg/m³)
- V = characteristic velocity (m/s)
- L = characteristic length (m) — pipe diameter for pipe flow, hydraulic diameter for other geometries
- μ (mu) = dynamic viscosity (Pa·s or kg/m·s)
Alternatively expressed using kinematic viscosity (ν = μ/ρ):
Re = (V × L) / ν
Physical Interpretation of Reynolds Number
The Reynolds number represents the ratio of inertial forces to viscous forces in the flow:
Inertial forces represent the tendency of the fluid to continue moving in its current direction — momentum effects.
Viscous forces represent the tendency of the fluid to resist relative motion between layers — the dampening effect of viscosity.
At low Reynolds numbers (viscous forces dominate) → Laminar flow. The fluid’s viscosity is sufficient to dampen any disturbances, maintaining orderly layered motion.
At high Reynolds numbers (inertial forces dominate) → Turbulent flow. Inertial effects amplify small disturbances rather than damping them, producing chaotic motion.
Reynolds Number Thresholds for Pipe Flow
For flow inside circular pipes — the most thoroughly studied geometry:
Re < 2,300: Laminar flow. Smooth, ordered, predictable.
2,300 < Re < 4,000: Transitional flow. Neither fully laminar nor fully turbulent. Intermittent bursts of turbulence in a mostly laminar flow. Unstable and sensitive to disturbances.
Re > 4,000: Turbulent flow. Chaotic, well-mixed, with the characteristic velocity fluctuations of fully developed turbulence.
These thresholds are for smooth, straight pipes under ideal conditions. Pipe bends, roughness, fittings, and entrance effects all shift the transition — turbulence can be triggered at lower Reynolds numbers in practical piping systems.
Velocity Profiles — A Key Difference Between Laminar and Turbulent Flow
The velocity profile — how velocity varies across the cross-section of a pipe or channel — is strikingly different between laminar flow and turbulent flow. This difference has profound practical consequences.
Laminar Flow Velocity Profile — The Parabola
In fully developed laminar flow in a circular pipe, the velocity profile is a perfect parabola — the classic result from the Hagen-Poiseuille equation.
Velocity is zero at the pipe wall (the no-slip boundary condition — fluid velocity matches wall velocity, which is zero for a stationary wall). Velocity increases smoothly toward the pipe centerline. Maximum velocity at the centerline is exactly twice the average velocity.
This parabolic profile means there’s a very significant velocity gradient from wall to center. The centerline moves at twice the average velocity while the near-wall region moves very slowly.
For pharmaceutical and laboratory applications, this parabolic velocity profile in laminar flow has important implications. In analytical instruments like capillary electrophoresis, the parabolic profile causes band broadening — different fluid elements at different radial positions travel at different speeds, causing sample plugs to elongate into parabolic shapes during transit.
Turbulent Flow Velocity Profile — The Flatter Profile
In turbulent flow, the velocity profile is much flatter — almost uniform across the pipe cross-section, with a very thin region near the wall (the viscous sublayer) where the velocity drops rapidly to zero.
The intense mixing in turbulent flow constantly redistributes momentum between fluid elements at different radial positions, causing the profile to flatten. The maximum centerline velocity in turbulent flow is only about 1.2 times the average velocity — much closer to uniform than the 2:1 ratio in laminar flow.
This flatter turbulent profile means that the bulk of the fluid moves at nearly the same velocity — more like “plug flow” than the parabolic laminar profile.
Pressure Drop — How Flow Regime Affects Energy Consumption
One of the most practically important differences between Laminar vs Turbulent Flow is how they relate to pressure drop and pumping energy requirements.
Laminar Flow Pressure Drop — The Hagen-Poiseuille Equation
For fully developed laminar flow in a circular pipe, the Hagen-Poiseuille equation gives the pressure drop:
ΔP = (128 × μ × L × Q) / (π × D⁴)
Where:
- ΔP = pressure drop (Pa)
- μ = dynamic viscosity (Pa·s)
- L = pipe length (m)
- Q = volumetric flow rate (m³/s)
- D = pipe diameter (m)
Key observations:
Pressure drop is directly proportional to flow rate (Q). Double the flow rate, double the pressure drop.
Pressure drop varies inversely with the fourth power of diameter. Halve the pipe diameter and pressure drop increases by a factor of 16 for the same flow rate.
Pressure drop is directly proportional to viscosity but independent of density (in laminar flow).
Turbulent Flow Pressure Drop — The Darcy-Weisbach Equation
For turbulent flow, the Darcy-Weisbach equation describes pressure drop:
ΔP = f × (L/D) × (ρ × V²/2)
Where f is the Darcy friction factor — dependent on Reynolds number and pipe roughness (from the Moody diagram).
Key observations:
Pressure drop is proportional to V² — the square of velocity — not V¹ as in laminar flow. This means turbulent flow pressure drop increases much more rapidly with velocity than laminar.
Pipe roughness matters in turbulent flow. Rough pipe walls create additional turbulent energy dissipation that smooth walls don’t. In laminar flow, roughness has negligible effect (within the ranges normally encountered).
Heat Transfer Differences — Why Flow Regime Matters for Thermal Systems
Laminar vs Turbulent Flow has profound implications for heat transfer between the fluid and pipe walls — relevant for heat exchangers, pharmaceutical process vessels, and any application where thermal control matters.
Laminar Flow Heat Transfer
In laminar flow, heat transfer between fluid and wall occurs primarily through conduction — thermal energy diffuses across the velocity gradients from the wall (hot or cold) toward the pipe centerline. This is a relatively slow process.
The layered nature of laminar flow means there’s no convective mixing to bring hot or cold fluid from the wall region into the bulk flow. Heat transfer coefficients in laminar flow are relatively low.
Turbulent Flow Heat Transfer
Turbulent flow dramatically enhances heat transfer. The chaotic mixing continuously brings fluid from the bulk into contact with the wall and vice versa — efficiently transporting thermal energy between the wall and the bulk fluid. Heat transfer coefficients in turbulent flow can be 10-100 times higher than in laminar flow for the same fluid.
This is why most industrial heat exchangers are designed for turbulent flow — the enhanced heat transfer makes them far more compact and efficient than laminar flow exchangers would need to be.
For pharmaceutical process vessels with jacketed heating and cooling, the flow regime within the jacket (and within the vessel from the agitator’s perspective) significantly affects heating and cooling rates and temperature uniformity.
Mass Transfer and Mixing — Critical for Pharmaceutical Applications
The mixing implications of Laminar vs Turbulent Flow are directly relevant to pharmaceutical manufacturing, chemical processing, and laboratory applications.
Laminar Flow — No Cross-Stream Mixing
In pure laminar flow, there is no mixing between adjacent streamlines — mass transfer occurs only through molecular diffusion, which is extremely slow for dissolved species in liquid systems. Two laminar streams that merge at a junction travel side by side for a long distance without mixing (except through slow diffusion at the interface).
This absence of mixing is sometimes exploited in microfluidic systems where precise control of concentration profiles is needed — the predictability of laminar mixing (actually non-mixing) in microchannels allows controlled reaction geometries.
In most chemical engineering applications, however, the lack of turbulent mixing in laminar flow means that mixing equipment (impellers, static mixers) must work harder to achieve homogeneous blending.
Turbulent Flow — Efficient Mixing
Turbulent flow produces rapid, efficient mixing through the chaotic eddy motion that constantly transports fluid elements from one location to another. Two turbulent streams merging mix within a relatively short distance — the eddies rapidly incorporate one stream into the other.
For pharmaceutical liquid manufacturing — preparation of solutions, suspensions, and emulsions — turbulent mixing in tanks (driven by impellers in the turbulent regime) achieves the batch uniformity that GMP requires.
Cleanroom Airflow — Where Laminar vs Turbulent Flow Has Direct Pharmaceutical Significance
For pharmaceutical professionals and cleanroom designers, the Laminar vs Turbulent Flow distinction isn’t abstract physics — it defines the fundamental approach to contamination control in classified manufacturing environments.
Why Cleanroom Airflow Design Is Built Around This Distinction
In pharmaceutical cleanrooms, the primary contamination mechanism is airborne particles — skin cells, fabric fibers, microbial particles — that can settle on exposed pharmaceutical products, processing surfaces, and equipment. Controlling these particles requires controlling the airflow pattern that transports them.
The cleanroom airflow design directly determines whether particles generated within the cleanroom are rapidly swept away from critical zones (as in unidirectional laminar flow) or are mixed throughout the room volume (as in turbulent, conventionally ventilated spaces).
Unidirectional (Laminar) Cleanroom Airflow — ISO 5 Grade A
The highest-grade pharmaceutical cleanroom zones — ISO 5 (Grade A in EU GMP terminology) — use unidirectional laminar flow airflow. HEPA-filtered air flows in a single direction across the critical zone, typically downward from a ceiling-mounted HEPA filter array.
In true unidirectional laminar flow cleanroom airflow, the air velocity is uniform across the cross-section — typically 0.45 m/s ± 20% — and particles generated within the flow are carried downward and out of the critical zone rather than being dispersed throughout the space.
The physics behind this is straightforward: in laminar flow, there’s no cross-stream mixing. A particle generated at one point follows a streamline directly downstream (downward, in a downflow system). It doesn’t get mixed back into the clean incoming air. It gets swept out.
This is why Grade A cleanroom airflow — the unidirectional laminar flow in laminar flow cabinets, filling isolators, and dispensing booths — provides the ISO 5 particle count environment that pharmaceutical product-exposed operations require. The laminar flow sweeps contamination away from the critical zone deterministically.
Turbulent Dilution Ventilation — ISO 7 and ISO 8 Cleanrooms
Lower-grade cleanroom environments — ISO 7 (Grade C) and ISO 8 (Grade D) — use turbulent dilution ventilation rather than unidirectional laminar flow. HEPA-filtered air is supplied through ceiling-mounted diffusers at high air change rates (20-60 air changes per hour typically), and turbulent mixing dilutes the particle concentration throughout the room volume.
The contamination control mechanism here is dilution — particles generated by room occupants are diluted by the constant introduction of clean HEPA-filtered supply air. The room reaches a steady-state particle count determined by the balance between particle generation rate and dilution rate.
The cleanroom airflow design for turbulent dilution rooms focuses on achieving uniform air distribution — supply and return air positioned to prevent stagnant zones where particles accumulate — and on maintaining the required air change rate.
Why You Can’t Replace Grade C Ventilation with Grade A Laminar Flow
A common misconception is that adding local Grade A laminar flow stations in a Grade D room is equivalent to a Grade C room. It isn’t. The room-level turbulent ventilation provides the background particle environment that limits what the local laminar flow zones see as incoming air. The room classification is a system property — not achievable by adding individual laminar flow elements without upgrading the room-level ventilation.
Understanding Laminar vs Turbulent Flow at both the room level (turbulent dilution ventilation for room classification) and the local level (unidirectional laminar flow for Grade A critical zones) is essential for pharmaceutical cleanroom design.
Laminar Flow Cabinets, Biosafety Cabinets, and Dispensing Booths
These pieces of equipment — which pharmaceutical professionals encounter daily — are practical applications of laminar flow principles:
Horizontal laminar flow cabinets: HEPA-filtered air flows horizontally from the back of the cabinet toward the operator. Protects the product inside the cabinet from contamination. Used in pharmaceutical compounding and microbiological work.
Vertical laminar flow cabinets (downflow): Air flows downward from ceiling HEPA filters. Protects the work surface from falling contamination.
Dispensing booths (reverse laminar flow): Air flows from the top toward a rear extract — reverse of conventional direction, protecting the operator from pharmaceutical powder dust.
Filling isolators: Completely enclosed Grade A environments using laminar flow with overpressure containment for sterile filling operations.
All of these equipment types exploit the orderly, predictable behavior of laminar flow to achieve their contamination control objectives — which is precisely why understanding Laminar vs Turbulent Flow is essential pharmaceutical knowledge.
Pipe Flow Applications in Pharmaceutical Manufacturing
Beyond cleanroom airflow, Laminar vs Turbulent Flow in piping systems has direct relevance to pharmaceutical manufacturing:
Water for Injection (WFI) Distribution Systems
WFI distribution loops in pharmaceutical facilities are specifically designed to maintain turbulent flow throughout the loop — typically at flow velocities that maintain Re > 10,000 at minimum demand. The reason is microbial biofilm prevention.
In laminar flow, the very slow-moving near-wall region provides favorable conditions for bacterial attachment and biofilm formation. The low wall shear stress in laminar flow allows attached bacteria to colonize and grow without being detached by fluid mechanical forces.
In turbulent flow, the high wall shear stress and constant velocity fluctuations in the near-wall region inhibit biofilm attachment and growth, and tend to detach and remove any nascent biofilm. Maintaining turbulent flow in WFI loops is a fundamental contamination control strategy.
Process Piping Design
Pharmaceutical process pipelines — carrying API solutions, excipient slurries, cleaning solutions — are designed with flow regimes appropriate to the application. Cleaning solutions require turbulent flow for effective CIP (clean-in-place) operation. Shear-sensitive biological materials may require laminar flow to avoid product damage. API solution transfer may be in either regime depending on the specific requirements.
Understanding the Reynolds number for specific pipeline configurations — calculating Re from fluid properties, pipe dimensions, and flow rate — allows engineers to verify that the intended flow regime is achieved and maintained.
Chromatography Columns
Liquid chromatography — HPLC, preparative chromatography for API purification — operates at low Reynolds numbers through packed beds. The interstitial flow through the packing material is in the laminar flow regime, which is important for maintaining narrow chromatographic peak widths. Turbulent mixing in the column would broaden peaks and reduce resolution.
Practical Examples of Reynolds Number Calculations
Working through some concrete examples builds intuition for when laminar flow versus turbulent flow occurs:
Example 1: Water in a Laboratory Pipe
Water at 25°C flowing through a 10mm diameter pipe at 0.5 m/s.
Properties of water at 25°C: ρ = 997 kg/m³, μ = 0.00089 Pa·s
Re = (ρ × V × D) / μ = (997 × 0.5 × 0.01) / 0.00089 = 5,601
Re = 5,601 → Turbulent flow. Normal laboratory water supply at this velocity is turbulent.
Example 2: Air in a WFI Distribution Pipe
Actually, let’s do cleanroom airflow in a HEPA filter plenum:
Air at 20°C, velocity 0.45 m/s, through a 0.6m × 0.6m HVAC duct.
Properties of air at 20°C: ρ = 1.2 kg/m³, μ = 0.0000181 Pa·s, hydraulic diameter = 0.6m (square duct)
Re = (1.2 × 0.45 × 0.6) / 0.0000181 = 17,900
This is turbulent flow in the supply plenum. However, as air exits through the HEPA filter face and enters the cleanroom at the specified 0.45 m/s face velocity, the macroscopic flow pattern is designed to be unidirectional — which is what “laminar flow” means in the cleanroom context. Note that cleanroom laminar flow is unidirectional and uniform, but the microscale flow is actually not necessarily in the viscous laminar regime — it’s the macroscopic uniformity that creates the contamination control benefit.
Example 3: Blood in a Large Artery
Blood flow in the aorta: diameter ~25mm, mean velocity ~0.2 m/s, blood viscosity ~0.003 Pa·s, density ~1050 kg/m³.
Re = (1050 × 0.2 × 0.025) / 0.003 = 1,750 → Laminar flow (in the mean flow sense, though pulsatility creates transitional conditions).
The Transition Between Laminar and Turbulent Flow
The transition from laminar flow to turbulent isn’t a sharp switch — it’s a gradual process that depends on disturbances and the ability of the flow to amplify or dampen them.
The Role of Disturbances
All real flows contain small disturbances — vibrations from pumps, pipe roughness, entrance effects, temperature variations. At low Reynolds numbers, viscosity damps these disturbances before they can grow — the flow returns to the laminar state. At high Reynolds numbers, the inertial terms amplify disturbances — small perturbations grow into the eddies characteristic of turbulence.
The critical Reynolds number (Re ≈ 2,300 for pipe flow) is where the balance tips from disturbance damping to disturbance amplification under typical conditions. In extremely carefully controlled laboratory experiments with smooth pipes and completely undisturbed inlet conditions, laminar flow can be maintained up to Reynolds numbers of 100,000 — demonstrating that turbulence requires finite disturbances to trigger, not just high Re.
Practical Implications
For engineering applications, assuming turbulence develops by Re = 4,000 is conservative and appropriate. For sensitive applications where laminar flow is desired — such as microfluidic devices or certain analytical instruments — careful design to minimize disturbances and keep Re well below 2,300 is necessary.
Laminar Flow in Laboratory Instruments and Analytical Applications
Beyond cleanroom design, laminar flow principles apply directly to laboratory instruments and analytical methods:
Capillary Electrophoresis
CE separations occur in narrow capillaries (typically 50-100 µm diameter) where the electroosmotic flow driving the separation is laminar flow — specifically, the distinctive parabolic velocity profile of laminar flow causes the band broadening that limits CE resolution at high injection volumes.
Electroosmotic flow has a flatter (plug flow) profile compared to pressure-driven laminar flow in capillaries — an advantage that CE exploits by using electroosmotic rather than pressure-driven flow for transport.
Flow Injection Analysis
FIA techniques rely on controlled dispersion of sample plugs as they’re carried by a laminar flow carrier stream to a detector. The parabolic laminar flow profile causes predictable radial dispersion that FIA methods are calibrated for. Understanding laminar flow dispersion behavior is fundamental to FIA method design.
Microfluidics
Virtually all microfluidic devices operate in laminar flow regime — the small channel dimensions produce very low Reynolds numbers even at fluid velocities that would produce turbulent flow in larger conduits. This laminar flow regime enables precise control of fluid interfaces, reaction fronts, and concentration gradients that microfluidic applications exploit.
TOPTEC Scientific — Laboratory and Cleanroom Infrastructure That Responds to Flow Science Principles
The connection between Laminar vs Turbulent Flow theory and practical laboratory and cleanroom design is direct — and it’s where TOPTEC Scientific provides essential value to Pakistani pharmaceutical manufacturers, research institutions, and industrial laboratories.
TOPTEC Scientific is a Pakistan-based manufacturing company producing high-specification laboratory furniture and cleanroom equipment for facilities throughout Pakistan. When you Buy Laboratory Furniture from TOPTEC Scientific, you’re buying locally manufactured equipment designed with the understanding of how laboratories and cleanrooms actually work — including the cleanroom airflow principles that this guide has covered.
For facilities where cleanroom airflow design matters — pharmaceutical manufacturing cleanrooms, microbiological laboratories, sterile compounding areas, analytical chemistry laboratories — TOPTEC Scientific provides:
Laminar Flow Cabinets and Workstations
Properly engineered laminar flow workstations with HEPA-filtered unidirectional airflow creating Grade A (ISO 5) conditions for pharmaceutical and microbiological work. The laminar flow in these cabinets operates on exactly the principles discussed in this guide — unidirectional, uniform velocity delivery that sweeps contamination away from the critical work zone rather than mixing it throughout.
When you Buy Laboratory Furniture that includes laminar flow workstations from TOPTEC Scientific, you’re getting equipment designed by people who understand the airflow engineering behind the contamination control function.
Dispensing Booths with Reverse Laminar Airflow
For pharmaceutical raw material dispensing — where reverse laminar flow (from above toward a rear extract) provides simultaneous product protection and operator protection during powder handling — TOPTEC Scientific manufactures properly engineered dispensing booths with appropriate face velocity and HEPA filtration.
Chemical-Resistant Laboratory Workbenches
Stable, properly specified workbenches for analytical chemistry, pharmaceutical QC, and research laboratory applications. Chemical-resistant surface materials appropriate for the specific laboratory chemistry environment. Appropriate bench dimensions and heights for different analytical instruments.
When you need to Buy Laboratory Furniture for analytical testing — dissolution testing, disintegration testing, moisture analysis, chromatography — TOPTEC Scientific‘s locally manufactured workbenches provide the stable, cleanable, chemically resistant working surfaces these applications require.
Stainless Steel Production Workbenches
For pharmaceutical manufacturing environments — cleanrooms, dispensing areas, manufacturing support areas — SS304 and SS316 workbenches with seamless welded construction and pharmaceutical-grade surface finishes. These workbenches are designed for the cleaning protocols and contamination control requirements of pharmaceutical GMP environments.
Fume Hoods with Appropriate Airflow Design
Ducted fume hoods with proper face velocity and sash design for laboratory chemical handling. The airflow design of a fume hood is a direct application of fluid mechanics principles — the inward face velocity that provides operator protection relies on appropriate airflow management to prevent turbulent disruption of the protective air curtain.
TOPTEC Scientific‘s fume hoods are designed with appropriate airflow performance for their intended laboratory applications.
Pass-Through Boxes for Controlled Environments
For controlled environment facilities where material transfer between zones with different environmental classifications requires maintaining pressure differentials and preventing contamination transfer — TOPTEC Scientific manufactures pass-through boxes that support the pressure cascade design of pharmaceutical cleanrooms.
Complete Laboratory Fit-Out
For laboratories establishing new capability or expanding existing operations, TOPTEC Scientific provides complete laboratory furniture fit-out — from individual instrument workstations to complete room furnishing. When you Buy Laboratory Furniture for a complete laboratory project from TOPTEC Scientific, the local manufacturing advantage means custom dimensions, coordinated delivery and installation, and local support for future modifications.
Cleanroom Furniture for Classified Pharmaceutical Environments
Cleanroom-appropriate workbenches, storage systems, and mobile trolleys designed for classified pharmaceutical manufacturing environments where contamination control governs every furniture and equipment decision.
The practical case for choosing TOPTEC Scientific when you Buy Laboratory Furniture is straightforward: local manufacturer with direct technical communication, no import delays or complications, ability to customize for specific application requirements, local installation support, and ongoing local service as needs evolve.
Summary — Key Takeaways From Laminar vs Turbulent Flow
The Reynolds Number is the governing parameter. Re < 2,300 → laminar; Re > 4,000 → turbulent; 2,300-4,000 → transitional.
Laminar flow is orderly and layered. Predictable velocity profiles, no cross-stream mixing, lower pressure drop at given velocity, poor heat and mass transfer.
Turbulent flow is chaotic and well-mixed. Flatter velocity profiles, excellent mixing, higher pressure drop, excellent heat and mass transfer.
Cleanroom airflow design exploits laminar flow principles. Unidirectional, uniform cleanroom airflow in Grade A (ISO 5) zones uses laminar flow to sweep contamination away from critical pharmaceutical operations deterministically.
Pharmaceutical piping design deliberately maintains turbulent flow. WFI loops require turbulent flow for biofilm prevention and effective CIP cleaning.
Both regimes have appropriate applications. The goal isn’t always laminar or always turbulent — it’s matching the flow regime to the engineering objective.
Closing Thoughts
Laminar vs Turbulent Flow is foundational fluid mechanics knowledge with direct, practical consequences for every field that involves moving fluids — which includes virtually every branch of engineering and science.
For pharmaceutical professionals specifically, understanding that cleanroom airflow in Grade A zones achieves its contamination control function through the orderly, sweeping character of laminar flow — and that room-level ventilation in Grade C and D environments works through turbulent dilution — provides the conceptual framework for understanding pharmaceutical cleanroom design and its regulatory basis.
