What is Stability Chamber Working Principle? When I first started working around pharmaceutical stability testing, I genuinely thought stability chambers were basically fancy refrigerators. You know — with humidity control bolted on. Set your temperature, set your humidity, machine maintains it. How complicated could it be?
Turns out, pretty complicated. The stability chamber working principle is significantly more sophisticated than that description suggests, and the reason it matters to understand it properly isn’t academic at all. It’s entirely practical.
Here’s the chain of consequences that most people don’t fully think through: your stability chamber fails to maintain conditions properly → your stability data is compromised → your regulatory submission is at risk → your product launch is delayed → patients don’t get timely access to medicines. That’s a real chain. It happens. And it usually starts with someone not understanding how their chamber actually works — or not maintaining it because they don’t understand what they’re maintaining.
So this guide is my attempt to fix that. We’re going to work through the stability chamber working principle properly — the feedback control systems, the temperature and humidity mechanisms, the control logic, what qualification actually needs to cover, and what goes wrong and why. And for labs in Pakistan specifically, we’ll talk about sourcing equipment and the lab infrastructure that needs to surround it.
Let’s get into it.
What a Stability Chamber Is Actually Trying to Do
Before getting into mechanisms, let’s be clear about the target.
A stability chamber maintains defined environmental conditions — primarily temperature and relative humidity — within tight tolerances, for extended periods. Months and years, not hours. The tolerances that ICH guidelines specify are genuinely demanding:
- ICH Q1A Zone II Long Term: 25°C ± 2°C / 60% RH ± 5% RH
- ICH Q1A Zone II Accelerated: 40°C ± 2°C / 75% RH ± 5% RH
- ICH Q1A Zone IVb Long Term: 30°C ± 2°C / 65% RH ± 5% RH
- ICH Q1A Intermediate: 30°C ± 2°C / 65% RH ± 5% RH
Two degrees Celsius. Five percent relative humidity. Maintained continuously, 24 hours a day, seven days a week, for up to 24 months.
That’s the engineering challenge the stability chamber working principle has to solve. And once you appreciate how demanding those specifications actually are — especially the humidity side — you start to understand why these machines are more complex than they look.
The Core Concept: Feedback Control
The stability chamber working principle is built entirely on feedback control. This is one of the most fundamental concepts in engineering, and if you understand it properly, everything else about how stability chambers work makes sense.
A feedback control system has three things working together:
A setpoint — what you want (25°C)
A sensor — something measuring what you actually have (a temperature sensor reading the chamber right now)
A controller — something comparing those two numbers and taking action to reduce the gap
The controller’s action drives an actuator — a heater, a refrigeration compressor, a humidifier — which changes the actual condition toward the setpoint. Then the sensor measures again. Controller compares again. Takes action again.
Continuously. In a loop.
That’s the feedback loop. That’s the core of the stability chamber working principle. Everything else is detail about how each part of that loop is implemented. And the sophistication — and the cost — of different chambers is largely about how precisely and reliably each step in that loop is executed.
Temperature Control: Heating and Cooling Together
Here’s something that surprises people when they first think about it properly: stability chambers control temperature using heating and cooling simultaneously. Not alternating between them — actually both, at the same time.
Why? Because of how the refrigeration system works.
The Refrigeration Cycle
The cooling side of a stability chamber uses a vapor-compression refrigeration cycle — same fundamental physics as your household fridge, engineered with considerably more precision.
Four stages, worth understanding:
Compression: A compressor pressurizes refrigerant gas, raising its temperature well above the target chamber temperature. This hot high-pressure gas moves to the condenser.
Condensation: In the condenser — usually a coil with a fan blowing room air across it — the refrigerant releases heat to the room and condenses into a high-pressure liquid.
Expansion: That liquid passes through an expansion valve. The pressure drops rapidly. The temperature drops dramatically — often well below zero.
Evaporation: The cold low-pressure refrigerant flows through the evaporator coil inside the chamber. Because the refrigerant is much colder than the chamber air, heat flows from the air into the refrigerant. The refrigerant evaporates. The chamber air cools. The gas returns to the compressor and the cycle repeats.
That’s the cooling mechanism. The feedback control system determines when and how much to run it based on the gap between measured temperature and setpoint.
Where the Heater Comes In
The chamber also has a heating element — usually electric resistance — running at the same time as the refrigeration system. First reaction from most people: why would you cool and heat simultaneously? Doesn’t that just waste energy?
Kind of, yes. But it’s the only practical way to maintain ±2°C continuously.
Here’s the problem with cooling alone: refrigeration systems aren’t infinitely variable. They tend to cycle — compressor on, compressor off. If you’re relying solely on the compressor cycling to control temperature, you get swings as it turns on and off. Those swings can easily exceed your ±2°C tolerance.
The heater runs continuously and can be modulated finely. So the design philosophy is: run the refrigeration system to maintain a base cooling load, and use the finely-modulated heater to trim temperature precisely to setpoint. The combination gives you the tight control the ICH specifications require.
PID Control — What It Actually Means
The controller managing temperature in a properly designed stability chamber uses PID control. PID stands for Proportional-Integral-Derivative, and the stability chamber working principle depends on understanding why this matters over simpler control approaches.
Proportional (P): The control action is proportional to how far the temperature currently is from setpoint. Large error gets a large response. Small error gets a small response. Makes sense. The problem is that proportional control alone tends to leave a steady-state offset — temperature settles slightly away from setpoint rather than exactly at it.
Integral (I): This term accumulates error over time. If temperature has been 0.5°C below setpoint for the past 30 minutes, the integral term has been growing and adds extra heating to eliminate that persistent offset. It’s what drives the system all the way to setpoint rather than hovering near it.
Derivative (D): This term responds to how fast conditions are changing. If temperature is moving toward setpoint quickly, the derivative term reduces the control action to prevent overshoot. It’s predictive — anticipating where things are going and adjusting before getting there.
Together, these three terms allow the chamber to reach setpoint quickly, hold it precisely, and recover cleanly from disturbances like door openings. The specific PID parameters have to be tuned for each chamber design — this is part of the manufacturer’s engineering work.
Humidity Control: Where It Gets Genuinely Difficult
Temperature control is manageable once you understand the principles. Humidity control is where the stability chamber working principle really gets complex — and where most stability chamber failures actually occur.
The Fundamental Complication
Relative humidity is the ratio of actual water vapor in the air to the maximum water vapor the air could hold at that temperature, expressed as a percentage.
The critical issue: that maximum capacity changes with temperature. Warm air holds more water vapor than cool air. So if you change temperature without changing the absolute water content, relative humidity changes.
This means temperature and humidity are intrinsically linked. You can’t control one without affecting the other. The stability chamber working principle for humidity has to account for this coupling — and doing it reliably is why humidity control is harder than temperature control.
How Humidification Works
When chamber RH drops below setpoint, the humidification system activates. The approach in quality stability chambers is almost always steam injection — purified water heated to generate steam, injected directly into the chamber air.
Why steam injection specifically? It raises RH quickly and reliably, responds well to the feedback control system, and handles the kind of continuous fine adjustments needed to maintain ±5% RH.
The water must be purified. Using tap water in a steam-injection humidifier is how you gradually destroy the humidifier with mineral scale and potentially contaminate your samples. This is a maintenance point that matters a lot in practice, and we’ll come back to it.
How Dehumidification Works
When chamber RH rises above setpoint, moisture has to come out of the air. The primary mechanism for this is the refrigeration system — specifically the evaporator coil.
Remember the evaporator coil that cools the chamber air? If that coil’s surface temperature is below the dew point of the chamber air, water vapor condenses on it. That condensed water drains away, reducing the moisture content of the air. The air then passes over the heater before being recirculated, warming back toward temperature setpoint.
This is the critical coupling point I mentioned. The same refrigeration system that maintains temperature also provides primary dehumidification. The balance between how cold the evaporator gets (determining dehumidification rate) and how much the heater re-warms the air (determining temperature) establishes the equilibrium RH.
This is why stability chambers have to be engineered as integrated systems. You can’t independently specify the refrigeration capacity, heater capacity, and humidifier capacity and just assume they’ll work together. The balance between them has to be designed correctly from the start.
Why Humidity Problems Are So Common
Understanding the stability chamber working principle for humidity also explains why humidity failures are more common than temperature failures. The failure modes are numerous:
Humidifier scale buildup — if water quality isn’t maintained, mineral deposits gradually reduce humidifier capacity. Chamber can’t reach or maintain target RH.
Evaporator drain blockage — if condensate can’t drain away from the evaporator, water backs up and dehumidification becomes erratic.
Refrigerant issues — low refrigerant charge reduces evaporator coil temperature and dehumidification capacity. RH drifts upward.
Door seal degradation — aging door seals allow moisture exchange with room air. If the room is more humid than the chamber, RH climbs. If the room is drier, RH drops.
Humidity sensor drift — humidity sensors drift over time in ways that are difficult to detect without independent calibration. The controller thinks RH is correct when it isn’t.
Any one of these can cause your stability data to be generated under conditions outside the ICH specification. And if you don’t have continuous data logging and regular calibration checks, you might not know it happened until months later.
Air Circulation: The Element People Underestimate
People focus on the heating, cooling, and humidity systems when thinking about the stability chamber working principle. Air circulation gets overlooked. That’s a mistake.
The temperature and humidity sensors that drive the control system sit at specific locations — usually near the air return. But your samples are distributed across multiple shelves throughout the chamber. The conditions those samples actually experience depend entirely on how well conditioned air reaches all shelf locations.
A well-designed chamber has:
Continuous forced air circulation — fans moving air throughout the interior constantly, not just when heating or cooling.
Designed airflow paths — baffles and perforated panels directing air so all shelf positions receive conditioned air, not just the areas near supply and return points.
Appropriate velocity — fast enough for good mixing and rapid recovery after door openings, not so fast that it affects sample drying or disrupts open containers.
Without adequate, well-designed air circulation, you get stratification. Different shelf positions experience measurably different temperatures and humidities, even though the control system sensors show perfect conditions. The top shelf might be 2°C warmer than the bottom shelf. The back corner might be 7% RH higher than the front center position.
This is precisely why temperature and humidity mapping — placing calibrated data loggers throughout the chamber at multiple positions and recording conditions over time — is mandatory in proper qualification. The control system might be maintaining perfect conditions at the sensor location while actual conditions elsewhere are out of specification. You genuinely cannot know without mapping.
The Sensors: What’s Actually Being Measured
The entire feedback control system is only as trustworthy as the sensors driving it. This part of the stability chamber working principle gets overlooked in purchasing decisions and causes real problems later.
Temperature Sensors
Modern stability chambers use platinum resistance temperature detectors — PT100 or PT1000 sensors. These have a resistance that changes predictably with temperature. PT100 sensors have 100 ohms resistance at 0°C, changing about 0.385 ohms per degree Celsius.
PT sensors are preferred over thermocouples for stability chamber applications because they’re more stable over time, don’t require cold junction compensation, and are more linear across the relevant temperature range.
Most chambers have multiple temperature sensors:
- Control sensors driving the feedback system
- Safety sensors for high-temperature emergency cutout
- Monitoring sensors for mapping and verification
The control sensor needs calibration against a traceable reference standard — typically annually for GMP applications. And calibration of the sensor is separate from verifying that the sensor accurately represents conditions throughout the chamber, which is what mapping does. Both matter.
Humidity Sensors
Humidity measurement is technically more challenging than temperature. The dominant sensor type in modern stability chambers is the capacitive sensor — a thin polymer film absorbs water vapor from surrounding air, changing its electrical capacitance. That capacitance change is measured and converted to RH.
Capacitive sensors are accurate and relatively stable over time, which is why they’re the standard choice.
The practical concern with humidity sensors is drift. Even good quality sensors drift over time, and the drift can be difficult to detect without independent calibration. A sensor reading 60% RH when actual RH is 67% RH is a significant problem — the controller thinks conditions are correct when they’re well outside the ICH specification. Regular calibration of humidity sensors against traceable references is not optional in a GMP stability program.
The Control System: PLC, HMI, and Data Logging
Modern stability chambers use programmable logic controllers — PLCs — to implement the control algorithms and manage all inputs and outputs. Understanding this part of the stability chamber working principle matters for both operation and compliance.
What the PLC Is Doing
Continuously and simultaneously:
- Reading all sensor inputs
- Comparing readings to setpoints
- Calculating control outputs via PID algorithms
- Sending signals to compressor, heater, humidifier, fans
- Monitoring alarm conditions
- Logging data at defined intervals
The PLC firmware is the brain of the chamber. For GMP applications, this software is subject to computer system validation requirements. The stability chamber working principle in a regulated environment includes the control software as part of the validated system — not an afterthought.
HMI and Access Control
Operators interact with the chamber through a human-machine interface — touchscreen or keypad. From here, appropriate users can view current conditions, review trends, and acknowledge alarms.
What operators should not be able to do without authorization: change setpoints, modify alarm limits, alter logging frequency, delete data. These access controls aren’t bureaucratic formalities — they’re data integrity requirements. In Pakistan’s pharmaceutical sector, DRAP inspectors are increasingly focused on exactly these data integrity questions during GMP audits.
Data Logging Requirements
Continuous data logging is non-negotiable for GMP stability chambers. The system should record temperature and humidity at regular intervals — typically every 5-15 minutes — in a format that:
- Cannot be altered without an audit trail
- Is backed up against loss
- Can be exported for review and regulatory submission
- Includes accurate, verified timestamps
Alarms need to fire and reach someone when conditions deviate. Not just during working hours — 24/7. This means remote monitoring with SMS or email alerts, or connection to a building management system that’s continuously watched. A stability chamber alarm at 2am on a Saturday that nobody finds until Monday morning is a data integrity problem, not just a maintenance problem.
Walk-In vs. Reach-In Chambers
The stability chamber working principle applies to both, but they’re different engineering challenges in practice.
Reach-In Chambers

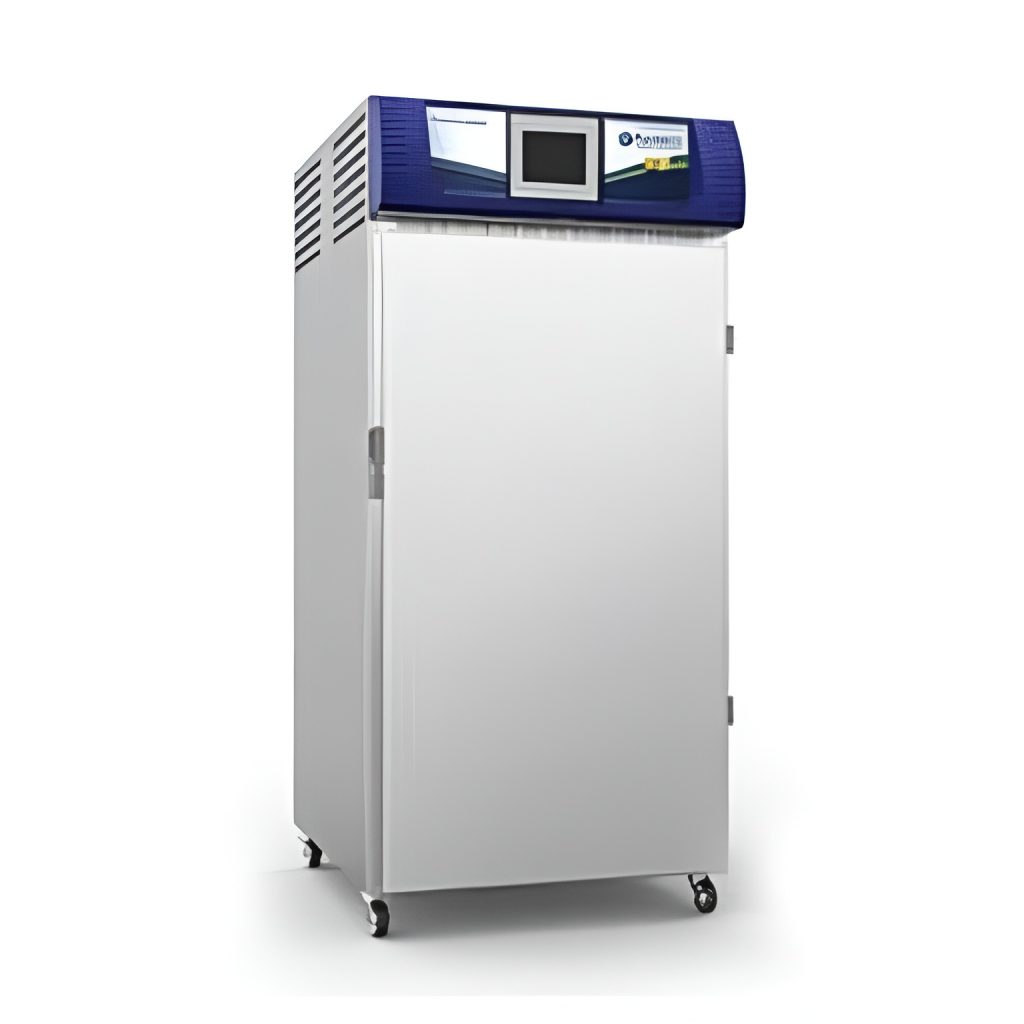

Free-standing cabinets from maybe 150 liters to 2,000 liters. Most common in pharmaceutical QC labs with moderate sample volumes.
Easier to qualify, lower cost, can be dedicated to specific ICH conditions, easier to replace. The limitations are storage volume and recovery time after door openings — both manageable in most QC lab contexts.
Walk-In Stability Rooms
Room-sized chambers where operators physically enter to load and retrieve samples. Can accommodate orders of magnitude more samples.
The engineering challenge scales up significantly. Managing temperature and humidity uniformity over a large three-dimensional space — while accounting for the heat and moisture that personnel bring in every time they enter — requires multiple air handling units, multiple sensors throughout the space, and considerably more sophisticated control.
Qualification is proportionally more intensive. Temperature and humidity mapping of a walk-in room requires many more measurement points and takes significantly longer to execute properly. If you’re considering a walk-in installation, factor that qualification effort into your project timeline.
ICH Climatic Zones and Pakistan’s Specific Position
One of the most practically important aspects of the stability chamber working principle for Pakistani pharmaceutical labs is understanding which ICH climatic zones apply to your products.
Pakistan falls in Zone IVb — hot, very humid. Long-term stability condition: 30°C/65% RH. Accelerated condition: 40°C/75% RH.
This is not a technicality buried in a guideline somewhere. It’s a direct regulatory requirement. Products intended for the Pakistani market — and most international markets that reference ICH guidelines — require stability data generated at these conditions. Your chambers must demonstrably maintain these conditions within specified tolerances. Your qualification documentation must prove it.
When you understand the stability chamber working principle properly, you understand why this matters: it’s not about having a machine that displays 30°C and 65% RH on its screen. It’s about having a machine that actually maintains those conditions at all sample locations, verifiably, throughout a multi-year study.
Qualification: Proving It Actually Works
Understanding the stability chamber working principle in theory is one thing. Documented proof that your specific chamber performs correctly is what GMP requires.
Installation Qualification (IQ)
IQ establishes the chamber was received as specified, installed correctly, and connected to appropriate utilities.
Documents: equipment identity, utility connections, software version, calibration status at delivery, environmental conditions at installation location.
Operational Qualification (OQ)
OQ verifies the chamber operates within specification. This is where the stability chamber working principle gets actually tested rather than assumed.
Temperature OQ:
Set to target. Allow 24 hours minimum to equilibrate. Verify control sensor reading against external calibrated reference — not just against the chamber’s own display. Document stability over time.
Humidity OQ:
Same approach. Set, equilibrate, verify with independent calibrated reference, document stability.
Alarm testing:
Simulate high temperature, low temperature, high humidity, low humidity, power failure. Verify each alarm activates correctly. Document everything.
Recovery testing:
Open the door for a defined period. Record time to return to setpoint. Document recovery performance. This is useful baseline data when you later have to evaluate whether a real door-open event caused a meaningful excursion.
Performance Qualification (PQ) — The Mapping Exercise
PQ mapping is the most critical qualification step and the one most directly tied to real-world confidence in the stability chamber working principle.
Place calibrated temperature and humidity data loggers at defined positions throughout the chamber — on each shelf level, multiple positions per shelf, typically 9 to more than 27 positions depending on chamber size. Record conditions continuously for at least 24-72 hours under normal operating conditions.
What you’re looking for: are conditions uniform throughout? Are there hot spots, cold spots, drier zones, wetter zones? Does any position consistently fall outside ±2°C and ±5% RH of setpoint?
Any position that consistently fails is a zone where samples should not be stored. Document it, mark the shelf, and keep samples away from that location. This isn’t a failure of the qualification process — it’s the qualification process working correctly.
Remapping is required after significant maintenance, after relocation, and periodically per your SOPs. Annual remapping is common in GMP facilities.
Common Failure Modes and What They’re Telling You
Understanding the stability chamber working principle makes troubleshooting significantly less mysterious.
Temperature drifting consistently high:
Most likely a refrigeration system problem — low refrigerant charge, dirty condenser coil, inadequate clearance around the unit for condenser air circulation. Check the condenser first. Is the coil clean? Is the room temperature significantly higher than normal?
Temperature drifting low:
Usually a control system issue, heater problem, or PID parameter drift. Less common than high-temperature drift but happens.
Humidity consistently elevated:
Check the evaporator drain first — if condensate can’t drain, dehumidification fails. Check door seals. Then check humidity sensor calibration. Any of these three is the likely culprit.
Humidity consistently low:
Humidifier scaling or failure is the first thing to investigate. Check water supply to the humidifier. Check scale buildup in the steam generator. Then verify humidity sensor calibration against an independent reference.
Good uniformity historically, now failing mapping:
Almost always a fan problem. Reduced airflow causes stratification to develop. Inspect the fan and verify it’s operating correctly. Also check whether airflow baffles have been displaced during sample loading operations.
Frequent alarms but conditions appear acceptable:
Alarm limits set too tightly relative to natural control variation, or sensor calibration drift. Check alarm setpoints and calibrate sensors.
What to Look For When Purchasing
When Pakistani labs are evaluating stability chambers, the stability chamber working principle understanding translates directly into the right questions to ask.
Temperature control precision: Manufacturer’s specified temperature uniformity across the chamber — not just accuracy at the sensor location. Ask for actual performance data.
Humidity range and precision: Specified humidity uniformity across the chamber. Ask what RH range is achievable at each temperature setpoint.
Sensor calibration documentation: Does the chamber come with traceable calibration certificates? What calibration interval does the manufacturer recommend?
Data logging: Continuous, configurable interval, secure storage, export capability. For GMP: is it 21 CFR Part 11 compliant?
Alarm system: What triggers alarms? Remote outputs available? What happens during power failure?
Qualification documentation support: IQ/OQ protocol templates? Factory test reports? Calibration certificates that support your validation package?
Local service support: This one honestly matters more than people factor in. Find out specifically where the nearest qualified service engineer is before you buy. A stability chamber failure during a critical stability study has regulatory consequences. “The engineer is in Dubai and can come in three weeks” is not an acceptable service model for GMP stability testing.
Setting Up Your Stability Lab Environment
Here’s something that pharmaceutical lab managers in Pakistan often get backwards. They carefully evaluate stability chambers — weeks of supplier comparison, detailed specification review — then set them up in a space that was never designed for them.
The stability chamber working principle with its tight tolerances depends on the environment the chamber operates in. Room temperature stability, power quality, ventilation around the unit, vibration — all of these affect chamber performance.
This is where TOPTEC PVT. LTD is directly relevant to your stability lab setup.
TOPTEC PVT. LTD: Laboratory Furniture Made in Pakistan, for Pakistani Labs
TOPTEC PVT. LTD manufactures laboratory furniture and lab infrastructure in Pakistan. Actually manufactures — not imports and relabels. And for pharmaceutical stability labs specifically, they provide the complete surrounding environment that allows stability chambers to perform correctly and analysts to work efficiently.
What TOPTEC Makes for Stability Labs
Laboratory Workbenches
Your stability lab needs bench space for sample preparation, labeling, and documentation. TOPTEC’s steel-frame workbenches come with chemical-resistant surface options — epoxy resin, phenolic resin, chemical-resistant laminate — appropriate for pharmaceutical use. Custom dimensions are standard practice at TOPTEC, not a special order that takes extra time and costs extra money.
Sample Preparation and Labeling Stations
Dedicated workstations configured for stability sample preparation tasks — adequate surface area for multiple containers, storage for labels and documentation, good lighting, ergonomic design for repetitive fine motor work.
Analytical Balance Tables
Stability testing involves weighing. Analytical balances need vibration-isolated surfaces — marble or granite tops or appropriate vibration-damping materials. TOPTEC manufactures dedicated balance tables for exactly this.
Documentation and Record Management Furniture
Stability programs generate substantial paperwork and electronic records. Organized, accessible, protected documentation storage isn’t just tidier — in a GMP environment, it’s a requirement. TOPTEC provides filing systems, document control cabinets, and dedicated documentation areas that integrate with the overall lab design.
Interim Sample Storage Cabinets
Samples waiting to go into chambers, or removed for analysis, need appropriate interim storage. TOPTEC manufactures storage cabinets in stainless steel or appropriate materials for pharmaceutical sample management.
Reference Standard Storage
Secure storage furniture with lock provisions for reference standards used in stability sample analysis.
Why Buying from TOPTEC Makes Sense
The lead time difference is real and it matters in ways that only become obvious when your project is running late.
Imported laboratory furniture — from European or other international manufacturers — arrives in Pakistan 12-20 weeks after ordering when you account for manufacturing, ocean freight, port clearance, and inland transport. If your stability lab has a regulatory-driven opening date, this timeline can be the critical path constraint that delays everything else.
TOPTEC delivers standard items in 3-5 weeks. Custom fabrications in 5-8 weeks. For most Pakistani lab projects, that difference between 4 weeks and 16 weeks is what determines whether your stability lab opens on schedule or you’re explaining to management why samples can’t be placed yet.
The custom dimension point matters practically too. Pakistani laboratory spaces frequently don’t match European or American standard furniture module sizes. Imported furniture requires awkward adaptations — partial modules, filler pieces, layouts that are slightly wrong for the space. TOPTEC fabricates to your exact room dimensions. The benches are the right length, not an approximation that you’ve adapted around.
PKR pricing eliminates currency exposure between quotation and delivery — which in Pakistan’s current economic environment is not a trivial consideration. What you’re quoted is what you pay.
And post-delivery support. If a shelf is at the wrong height, if you need an additional storage component six months after installation, if a bench section needs extending because your workflow changed — you’re having that conversation with the team that built your furniture. That’s a very different experience from trying to get a modification through an international distributor chain.
A Practical Stability Lab Infrastructure Checklist
For labs setting up or upgrading stability testing facilities:
Chamber Location and Utilities:
- ☐ Room temperature controlled — fluctuations in room temperature affect chamber performance
- ☐ Adequate clearance around each chamber for condenser air circulation
- ☐ No direct sunlight on chambers
- ☐ Dedicated power circuits for each chamber
- ☐ UPS or generator backup — power failures during stability studies require investigation
- ☐ Voltage stabilizers where Pakistani power quality requires them
Monitoring:
- ☐ Continuous data logging active on all chambers
- ☐ Remote alarm monitoring — 24/7 coverage established
- ☐ Alarm response procedure documented and trained
- ☐ Independent backup temperature monitoring separate from chamber system
Supporting Infrastructure (TOPTEC):
- ☐ Sample preparation bench with appropriate surface and space
- ☐ Labeling station configured for stability program workflow
- ☐ Documentation area — filing and record storage
- ☐ Interim sample storage cabinets
- ☐ Analytical balance table — vibration-isolated
- ☐ Reference standard storage — secure
Qualification:
- ☐ IQ completed and documented
- ☐ OQ completed — temperature and humidity independently verified
- ☐ PQ mapping completed — all positions within specification
- ☐ Alarm testing documented
- ☐ Ongoing calibration schedule established
- ☐ Periodic remapping schedule in SOPs
Data Integrity: Where the Stability Chamber Working Principle Meets Regulatory Reality
DRAP has been progressively aligning with WHO and ICH data integrity expectations, and stability chamber records are a specific focus area during pharmaceutical inspections.
The stability chamber working principle in a GMP context means temperature and humidity records must be continuous and complete. Gaps in the record — power failure, software errors, data deletion without investigation — require documented investigation and potentially invalidate stability data from the affected period.
The chamber record and the analytical record must reconcile. Before accepting analytical results from a stability time point, the temperature and humidity records during that storage period must be reviewed against acceptance criteria. This step is often missing in stability programs that haven’t been set up carefully.
Any out-of-specification temperature or humidity event must be documented and formally investigated — not just corrected. The investigation needs to assess impact on samples stored during the excursion. Was the deviation brief enough and small enough that samples are unaffected? Or does the excursion compromise the data from those samples? That assessment must be documented.
Software-generated data must be protected from alteration. 21 CFR Part 11 and EU GMP Annex 11 requirements for electronic records apply to stability chamber data logging systems. When evaluating chambers for purchase, this is as important a specification question as temperature performance.
Final Thoughts
Let me come back to where we started — my embarrassing assumption that stability chambers were basically fancy refrigerators.
The stability chamber working principle — integrated feedback control of temperature and humidity, the refrigeration cycle providing both cooling and dehumidification, PID control algorithms managing fine temperature adjustments, steam injection humidification, continuous sensor monitoring, PLC-based control with data logging and alarm management — is genuinely sophisticated engineering. It’s solving a hard problem: maintaining precise environmental conditions continuously for years.
Understanding the stability chamber working principle properly changes how you evaluate equipment when purchasing, how you design your qualification approach, how you troubleshoot problems, and how you maintain systems to prevent problems. All four of those things have direct regulatory and quality consequences in a pharmaceutical stability program.
And then there’s the environment the chamber operates in. Proper workbenches, documentation areas, sample storage, and preparation stations from a manufacturer like TOPTEC PVT. LTD — made in Pakistan, on realistic timelines, at stable PKR pricing, with the flexibility to match your exact lab dimensions — are what complete the picture.
Get the chamber right. Get the surrounding infrastructure right. Get the qualification and ongoing maintenance right. Do those three things and your stability program will generate trustworthy data that holds up under regulatory scrutiny.
Contact TOPTEC PVT. LTD
TOPTEC PVT. LTD manufactures laboratory workbenches, sample preparation stations, documentation furniture, storage cabinets, balance tables, and complete laboratory infrastructure solutions — all made in Pakistan for pharmaceutical, research, and industrial laboratory environments.
Contact TOPTEC to discuss your stability lab infrastructure requirements and receive a customized quotation based on your specific layout and application.
