When Simpler Is Actually Better — A Practical Guide to Choosing and Using Static Pass Boxes in Pharmaceutical and Industrial Cleanrooms
Let me start with something that doesn’t get said enough in cleanroom equipment discussions.
Not every material transfer point in a pharmaceutical or industrial facility needs the most sophisticated contamination control solution available. There’s a tendency — particularly among people who have just learned about dynamic pass boxes with HEPA filtration and UV sterilization — to assume that more features always means better protection. Sometimes that’s true. But sometimes spending three or four times more on a dynamic unit when a static pass box would do the job perfectly well is just wasting budget that could go toward other genuine quality needs.
The static pass box is genuinely cost-effective cleanroom material transfer equipment — not because it’s a compromise, but because for specific applications and classification boundaries, it’s the appropriate solution. Understanding which situations call for a static pass box versus a dynamic unit is what this guide is about.
We’ll cover what a static pass box actually is, where it works and where it doesn’t, how to specify one correctly, and what supporting infrastructure your cleanroom pass box installation needs. And for labs in Pakistan, we’ll cover sourcing from TOPTEC PVT. LTD, which manufactures this equipment locally.
What a Static Pass Box Is — And What Makes It “Static”

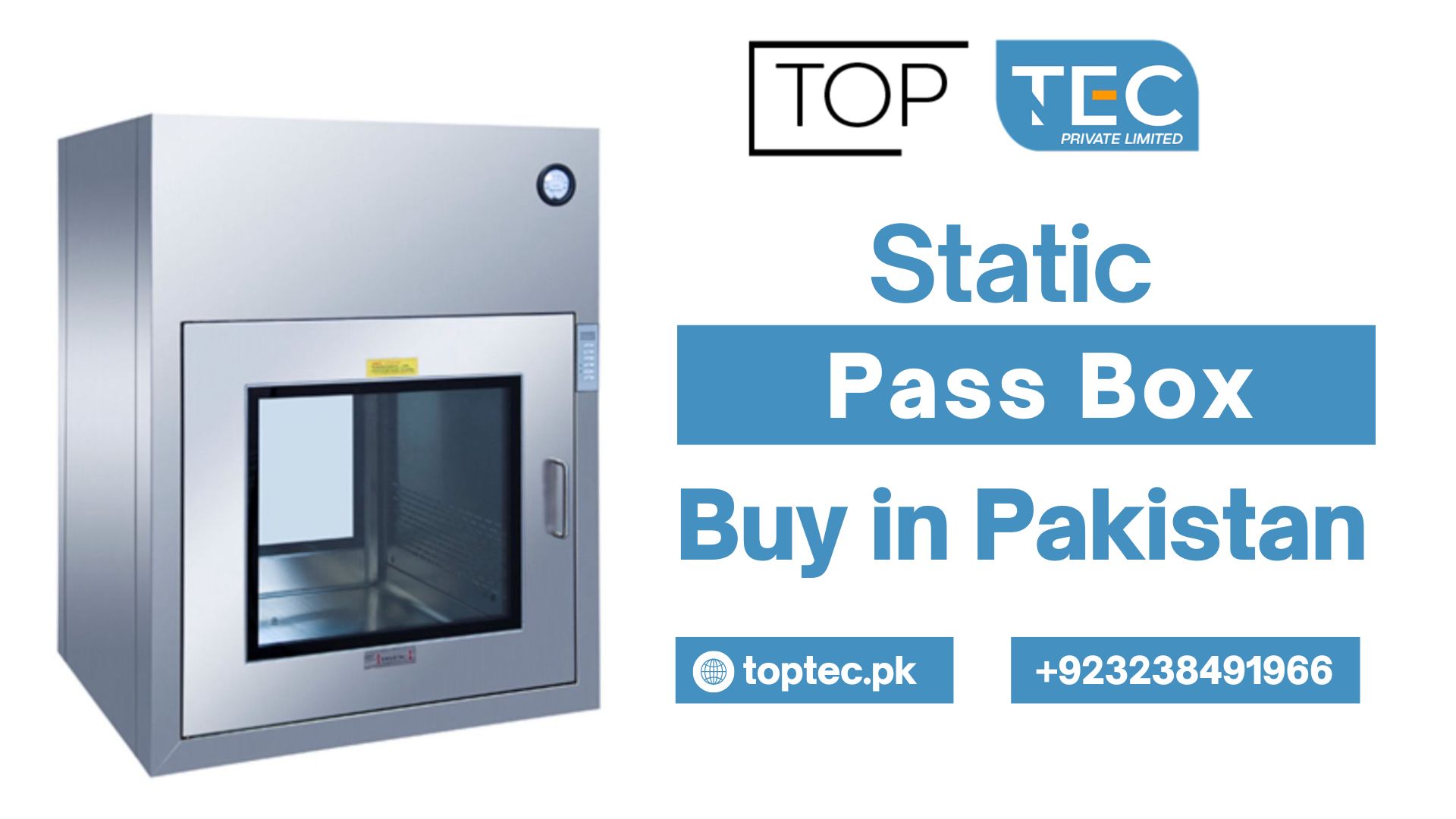

A static pass box — sometimes called a static transfer hatch or static pass-through chamber — is a sealed enclosure installed through the wall between two adjacent spaces of different cleanliness levels. It has doors on both sides, and the fundamental operational principle is simple: both doors cannot be open simultaneously.
The “static” designation refers to the absence of active airflow inside the chamber. There’s no fan, no HEPA filter, no air circulation system inside the transfer chamber. The contamination control function comes entirely from the interlock mechanism — the physical or electronic system that prevents both doors from being open at the same time.
This is the key distinction from a dynamic cleanroom pass box, which adds active HEPA-filtered airflow inside the chamber to clean the air and the surfaces of items during the transfer period.
A static pass box without active airflow might seem like a lesser solution by definition. But this overlooks the fundamental question of what contamination risk you’re actually managing at a particular transfer point. For many common pharmaceutical and industrial cleanroom transfer scenarios, the interlock function alone provides adequate contamination control — and the additional cost of active filtration systems adds expense without adding meaningful protection for that specific application.
How the Contamination Control Actually Works
Understanding what a static pass box is protecting against helps you assess whether it’s appropriate for your application.
The contamination problem a pass box solves — static or dynamic — is cross-contamination between two zones of different cleanliness classification through the transfer process. Without a pass box, the options for moving materials between classified spaces are limited and all problematic: opening a connecting door (which directly connects the two environments), carrying items through personnel airlocks (creating traffic conflicts and introducing additional contamination from personnel), or passing items through open windows in the partition (no contamination control at all).
A static pass box creates a controlled intermediate zone. Materials enter from the lower-classification side. That door closes. Only then can the higher-classification side door open. At no point are both environments simultaneously connected.
What this achieves:
- Maintains pressure differential between the two spaces — no direct air path exists between them during transfer
- Prevents airborne particles from the lower-classification area flowing directly into the higher-classification area
- Creates a transfer protocol that can be documented, trained, and audited
What a static pass box without active airflow doesn’t achieve:
- It doesn’t clean particles off the surfaces of items being transferred
- It doesn’t filter the air inside the chamber (which is a mix of whatever was in the chamber before the doors were opened)
- It doesn’t provide UV surface decontamination
For transfer between lower and intermediate classification areas — unclassified to ISO Class 8, ISO Class 8 to ISO Class 7, or similar steps — this level of contamination control is often entirely adequate. For transfer directly into ISO Class 5 (Grade A/B) environments, dynamic pass boxes with HEPA filtration are generally required.
Where Static Pass Boxes Are Appropriately Used
Between Unclassified and Grade D (ISO Class 8) Areas
Grade D is the lowest classification in pharmaceutical manufacturing — used for preparation activities, washing, component storage, and personnel airlocks leading to higher classifications. For material transfer into Grade D areas from unclassified corridors or warehouses, a static pass box with proper interlock is appropriate.
The contamination differential at this boundary is managed — you’re preventing uncontrolled corridor air from entering Grade D while allowing controlled material transfer. The items being transferred (components in primary packaging, equipment in sealed bags) aren’t exposed to the interior atmosphere in ways that require active filtration.
Between Grade D and Grade C (ISO Class 8 to ISO Class 7)
This is perhaps the most common appropriate application for a static pass box in pharmaceutical manufacturing. Many pharmaceutical solid dosage manufacturing areas are classified Grade C, with Grade D ante-areas for material staging.
Materials moving from Grade D staging into Grade C manufacturing — components in sealed secondary packaging, equipment in bags, consumables in boxes — are typically protected by their own packaging from whatever air they encounter in the pass box chamber. The interlock function prevents direct air connection between the two areas, and the sealed packaging protects the items themselves.
Research and Industrial Cleanroom Environments
For electronics assembly, optics manufacturing, and medical device production in ISO Class 7-8 environments, static pass box units at material transfer points between classified and unclassified areas are standard practice. The contamination requirements are more particle-focused than microbiologically focused, and the interlock function with physical separation serves the primary need.
Between Adjacent Manufacturing Suites of Similar Classification
When materials need to move between two areas of the same or similar classification — for example, between two adjacent Grade C manufacturing suites that are nonetheless physically separate — a static pass box provides a controlled transfer route without the need for personnel to carry materials through corridors, gowning areas, and airlocks.
Where Static Pass Boxes Are Not Appropriate
Being clear about limitations is as important as being clear about appropriate use.
Transfer into Grade A or Grade B Areas
Pharmaceutical Grade A (ISO Class 5 unidirectional flow) and Grade B (ISO Class 5 background to Grade A) environments have strict particle count requirements that must be maintained. Materials entering these areas — particularly items that will be opened or whose surfaces will be exposed in the critical zone — require active contamination control during transfer.
A static pass box without active HEPA filtration cannot provide the air cleanliness inside the transfer chamber that corresponds to Grade B standards. For these applications, a dynamic cleanroom pass box with HEPA H14 filtration is required.
Items with Exposed Critical Surfaces
Even at lower classifications, if the items being transferred will have surfaces exposed to the cleanroom atmosphere — open containers, unpackaged components, exposed product — the transfer process needs to be evaluated carefully. A static pass box doesn’t filter particle contamination from the item surfaces during transfer.
High-Risk Microbiological Applications
For sterility testing facilities, aseptic processing areas, or microbiological safety cabinet-adjacent areas where the primary contamination concern is microbial rather than particulate, the static design lacks the UV sterilization and HEPA filtration that help address biological contamination risks.
Interlock Options for Static Pass Boxes
Even though a static pass box lacks active airflow, the interlock mechanism is still a specification choice with real performance implications. There are two primary options.
Mechanical Interlocks
A physical mechanism — typically a sliding bar, rotating cam, or lever system — directly prevents one door from being opened when the other is open. No electronics, no power requirement.
Advantages: Simple, reliable, works during power failures, inexpensive, no software or calibration required.
Disadvantages: Can be defeated by determined or careless users (forcing the mechanism), provides no alarm if used incorrectly, generates no data log, has no audit trail.
For non-GMP or lower-criticality applications — research labs, industrial environments, educational institutions — mechanical interlocks are perfectly adequate and the most cost-effective choice.
Electronic Interlocks
Sensors detect door status; electromagnetic or solenoid locks control door access; a controller manages the interlock logic and outputs.
Advantages: Alarm outputs for misuse, data logging with timestamps, integration with building management systems, fail-locked behavior on power failure, more sophisticated access control options.
Disadvantages: Higher cost, requires power, needs calibration verification.
For GMP pharmaceutical facilities, electronic interlocks are strongly preferred even on static pass box units. The data logging and alarm capabilities are what transform a mechanical door mechanism into documented, auditable contamination control equipment. During DRAP inspections and GMP audits, interlock function records are expected for transfer equipment in classified areas.
Electronic Interlock Minimum Specifications for Pharmaceutical Use
When specifying an electronic interlock for a pharmaceutical static pass box:
- Door position sensors at both doors — detecting actual door status, not just lock status
- Fail-locked behavior on power failure confirmed
- Alarm output for simultaneous door opening attempt
- Alarm for door held open beyond specified time
- Timestamped data log of all door events
- Alarm history logging
- Output for connection to building management system if required
These specifications convert a simple door locking mechanism into a system that generates the documented evidence of correct use that GMP compliance requires.
Material and Construction Specifications
The physical construction of a static pass box matters for cleanroom compatibility, cleaning resistance, and longevity.
Stainless Steel Grade
304 stainless steel is the standard minimum for pharmaceutical cleanroom applications. It provides good corrosion resistance to most pharmaceutical cleaning agents and disinfectants and is appropriate for Grade C/D environments.
316L stainless steel provides better corrosion resistance, particularly to chloride-containing disinfectants. For environments using aggressive disinfection protocols — as is common in sterile manufacturing area ante-rooms — 316L is the better specification.
Interior Surface Finish
Surface finish is specified as Ra (average surface roughness) in micrometers. For a cleanroom pass box in a pharmaceutical environment:
- Ra ≤ 0.8 µm: Adequate for Grade C/D applications
- Ra ≤ 0.4 µm (electropolished): Preferred for more critical environments or aggressive cleaning regimes
Smoother surfaces are easier to clean completely, have less surface area for microbial attachment, and are more resistant to corrosion initiation. Coved interior corners — rounded rather than sharp where walls meet the floor — significantly improve cleanability.
Door and Seal Specifications
The door seal — the gasket that creates a physical seal when the door is closed — is a critical component of a static pass box. It determines:
- How well the chamber is isolated when both doors are closed
- Resistance to the cleaning and disinfecting agents applied to the exterior
- Longevity before replacement is needed
Specify silicone gasket material as minimum — silicone has broad chemical resistance to pharmaceutical disinfectants. Check compatibility specifically with quaternary ammonium compounds, isopropanol/water solutions, and any peroxide-based disinfectants used in your facility.
The door handle and hinge mechanism should be smooth and cleanable — no recesses that trap contamination or are difficult to reach with standard cleaning methods.
External Finish
The exterior of the static pass box is visible in the cleanroom and adjacent areas and must be compatible with the regular cleaning regimes applied to wall surfaces. Powder-coated steel or stainless steel exteriors are standard. Verify that the powder coat finish is compatible with your cleaning agents — some pharmaceutical disinfectants attack certain powder coat formulations over repeated applications.
Wall Mounting and Sealing
The interface between the static pass box frame and the wall is a critical installation point. Any gap at this interface creates a contamination pathway between the two classified spaces — precisely the kind of pathway the pass box is installed to prevent.
The pass box must be specified to match your actual wall construction thickness — not a standard thickness that’s close but not exact. A frame that doesn’t fill the full wall thickness leaves either a gap that needs to be filled separately or creates installation compromises.
For cleanroom panel system walls, the pass box frame should be flush with and properly bonded to the panel surface, with continuous sealing around the entire perimeter. For traditional block or drywall construction, appropriate sealant specification is needed.
Sizing Considerations
This is where many static pass box installations create operational problems that could have been avoided at the specification stage.
Internal Dimensions vs. External Dimensions
The external footprint of a static pass box is significantly larger than the internal usable chamber. The wall thickness, door mechanisms, and frame structure all consume space between the external and internal dimensions.
Always specify and verify internal dimensions — the actual usable transfer space — when purchasing. If you specify based on external dimensions and assume the internal space, you may find that your standard transfer containers don’t fit or only barely fit, creating operational awkwardness.
Sizing to Your Actual Transfer Needs
Think through what will actually be transferred through this pass box over the facility’s operational life:
- What is the largest single item that will be transferred?
- Are items routinely transferred in standardized containers of known dimensions?
- Will items be transferred one at a time or in batches (tray loads, multiple containers simultaneously)?
- Will any equipment items — not just materials — be transferred through this point?
A static pass box that’s just barely large enough for current needs becomes a problem when process changes, new products, or different container sizes arrive. Sizing with appropriate margin reduces the likelihood of operational workarounds — and cleanroom contamination control equipment should never be worked around.
Installation Qualification for a Static Pass Box
Even a static pass box in a GMP pharmaceutical environment requires documentation that it was installed correctly and functions as intended.
IQ (Installation Qualification) elements:
- Unit identity — manufacturer, model, serial number
- Internal dimensions verified against specification
- Wall installation and sealing — visual inspection and documentation
- Door seal integrity — physical inspection
- Interlock function verification — basic operational test
- Electronic interlock: sensor function test, alarm test, data logging verification
OQ (Operational Qualification) elements:
- Interlock sequence test: confirm Door A open prevents Door B from opening and vice versa
- Electronic interlock: all alarm conditions tested and documented
- Fail-safe test: power interruption test confirming fail-locked behavior
- Data log review: confirm timestamps and event records are generating correctly
- Cleaning procedure validation: confirm cleaning process reaches all interior surfaces
Qualification documentation for a static pass box is simpler than for a dynamic unit (no airflow testing, no filter integrity test, no UV intensity measurement) — but it still needs to exist and be current.
TOPTEC PVT. LTD: Static Pass Box Manufacturing in Pakistan
For pharmaceutical and industrial facilities in Pakistan specifying static pass box or cleanroom pass box equipment, TOPTEC PVT. LTD is a local manufacturer that addresses the practical challenges of sourcing cleanroom equipment in Pakistan.
TOPTEC manufactures laboratory furniture and cleanroom equipment locally — actually manufactures in Pakistan, not imports and relabels. For static pass box requirements specifically, this has several practical advantages.
Custom Fabrication for Your Actual Wall
Pakistani pharmaceutical facility walls come in a range of thicknesses and construction types — from 100mm partition panels to 200mm+ block construction. A standard imported cleanroom pass box designed for a specific wall thickness doesn’t fit other configurations without adaptor frames and sealing complications.
TOPTEC fabricates static pass box units to your actual wall thickness and opening dimensions. The unit fits your wall properly from installation, with appropriate sealing surfaces at both faces. This eliminates the improvised sealing and adaptor arrangements that create contamination pathway risks in improperly fitted imported units.
Lead Time Advantage
Imported cleanroom pass box equipment — from European, Indian, or Chinese manufacturers — typically takes 8-16 weeks to arrive in Pakistan after ordering, accounting for manufacturing, shipping, port clearance, and inland delivery.
TOPTEC delivers standard static pass box configurations in 3-5 weeks, custom fabrications in 5-8 weeks. For facilities under construction with commissioning timelines, this lead time difference is the difference between opening on schedule and explaining why the material transfer points aren’t qualified yet.
Direct Specification Discussion
When you’re specifying a static pass box with particular interlock requirements, specific internal dimensions, and particular surface finish requirements, having that specification conversation with the people who will actually build the unit is significantly more productive than communicating requirements through a distributor chain to a distant manufacturer.
TOPTEC’s local presence enables direct technical discussion, site visits if needed, and specification confirmation that imported equipment purchasing doesn’t allow.
Integrated Laboratory Furniture Supply
TOPTEC’s primary manufacturing is laboratory furniture — workbenches, storage systems, gowning room furniture, fume hoods, sink units. For pharmaceutical facility projects that need both cleanroom pass box equipment and the surrounding laboratory furniture, TOPTEC can supply both from a single local source on coordinated timelines.
This coordination matters practically. The bench areas adjacent to pass box installations, gowning room furniture, material staging areas, and documentation stations all need to be specified and delivered on a schedule that works with the construction and commissioning timeline. A single local supplier for both cleanroom pass box equipment and laboratory furniture simplifies this coordination significantly.
PKR Pricing and No Import Complications
Foreign currency pricing for imported cleanroom equipment creates cost uncertainty — exchange rate movements between order and delivery can meaningfully change the effective cost in PKR terms. Import duties, customs handling, and inland freight add further cost variability.
TOPTEC prices in PKR. The cost quoted is the cost paid. No currency exposure, no import duty calculations, no customs surprises.
Practical Decision Framework: Static vs. Dynamic Pass Box
When specifying material transfer points in a cleanroom facility, work through these questions:
What classifications are on each side?
- Unclassified/Grade D or Grade D/Grade C → static pass box typically appropriate
- Grade C/Grade B or Grade B/Grade A → dynamic cleanroom pass box required
What condition are items in when transferred?
- Sealed in primary or secondary packaging → static may be appropriate
- Exposed surfaces, open containers, unpacked items → dynamic filtration needed
What is the primary contamination concern?
- Maintaining pressure differential and preventing direct air connection → static sufficient
- Active cleaning of item surfaces or chamber air → dynamic required
What are your GMP documentation requirements?
- Regulated pharmaceutical manufacturing → electronic interlock required even for static units
- Research or non-GMP industrial → mechanical interlock may be adequate
What are your budget constraints?
- A properly specified and qualified static pass box with electronic interlock at a Grade D/Grade C boundary provides compliant contamination control at significantly lower cost than a dynamic unit that isn’t required by the classification boundary
Final Thoughts
The static pass box is a legitimate, appropriate, and cost-effective contamination control solution for material transfer at specific cleanroom classification boundaries. It’s not a compromise of a dynamic unit — it’s the right tool for a defined set of applications.
Understanding where it’s appropriate and where it isn’t, specifying the interlock correctly for your regulatory environment, getting the construction materials and dimensions right, and qualifying the installation properly — these are what convert a simple enclosed box into a functioning piece of GMP contamination control equipment.
For Pakistani pharmaceutical and industrial facilities needing static pass box or cleanroom pass box equipment manufactured locally — to your actual wall dimensions, on realistic timelines, at PKR pricing, with direct technical engagement — TOPTEC PVT. LTD is worth contacting.
